Sandvik

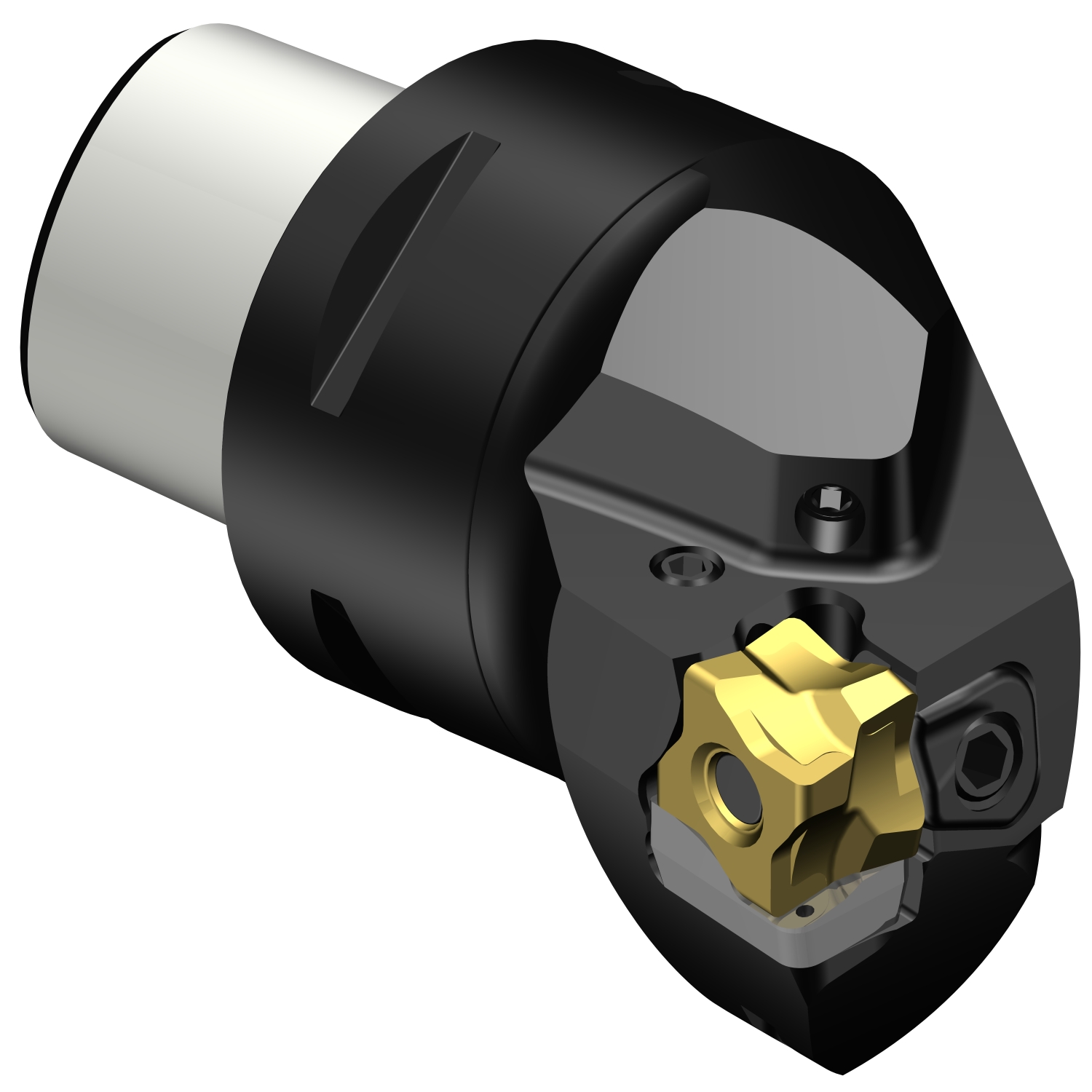

C4-3-80-LL27055-10C CoroTurn® 300 cutting unit for turning

Category Turning Indexable
SVK-6814419
Sandvik

C4-3-80-LL27055-10C CoroTurn® 300 cutting unit for turning

Item Code: SVK-6814419
Category Turning Indexable
Manufacturer Sandvik Coromant

Description

5412 150-01_Clamp (Included) _qty 1; 5516 010-02_Clamping screw (Included) _qty 1; 5322 600-01_Shim (Included) _qty 1; 416.1-832_Shim screw (Included) _qty 1; 5691 026-05_Nozzle (Included) _qty 1; 3214 013-03_Sealing plug screw (Included) _qty 1; 5512 104-01_Coolant screw (Included) _qty 1; 174.1-864_Key (Included) _qty 1; 5680 083-01_Bit (Included) _qty 1; 5512 104-03_Coolant stop screw (Optional) _qty 1; 5680 083-01_Bit (Optional) _qty 1; 5680 046-04_Key (Optional) _qty 1; 3021 012-020_Key (Optional) _qty 1; 3021 010-050_Key (Optional) _qty 1; 5680 074-01_Key (Optional) _qty 1 CoroTurn 300 -3-80-101108

Specifications

Adaptive Interface

Coromant Capto (bolt and segment clamping) -size C4

Brand

Sandvik

Category

Turning Indexable

Cutter Count

n/a

Diameter (Inch)

n/a

Diameter (Metric)

n/a

Functional Length

2.16535 inch

ISO Code

C4-3-80-LL27055-10C

LF Functional Length (Inch)

2.16535 inch

LF Functional Length (Metric)

55 mm

Platform

CoroTurn 300 -3-80-101108

Product Family

CoroTurn 300

Starting from
$512.23 / EA
/
%
- +
