HEVC-C-5 | Carbide End Mills


Featuring radial coolant holes, offset chipbreaker geometry, and premium Tplus coating, these 5 flute high performance end mills boost tool life in light profiling and High Efficiency Milling (HEM) applications.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, hardened steels, and other ferrous alloys
  • Engineered for excellent performance in light profiling and High Efficiency Milling (HEM) applications
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • 5 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for superior tool life and increased edge strength
  • Solid carbide
  • CNC ground in the USA
Slotting Slotting
Plunging Plunging
High Efficiency Milling (HEM) High Efficiency Milling (HEM)
Finishing Finishing
Roughing Roughing

5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp

14 items found
Sort by
Filter

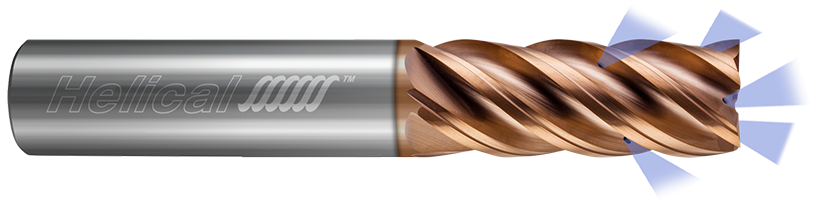

0.2500" (1/4) Cutter DIA x 0.2500" (1/4) Shank DIA x 0.0200" Radius x 0.3750" (3/8) Length of Cut x 2.0000" (2) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-015-50250-R.020)
Helical Solutions
0.2500" (1/4) Cutter DIA x 0.2500" (1/4) Shank DIA x 0.0200" Radius x 0.3750" (3/8) Length of Cut x 2.0000" (2) Overall...
Item Code: HEL-89902
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$178.60
/ EA , EA
LIST PRICE $178.60
%
Other selling quantities available
Add to quick list
Compare
0.2500" (1/4) Cutter DIA x 0.2500" (1/4) Shank DIA x 0.0200" Radius x 0.5000" (1/2) Length of Cut x 2.5000" (2-1/2) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-020-50250-R.020)
Helical Solutions
0.2500" (1/4) Cutter DIA x 0.2500" (1/4) Shank DIA x 0.0200" Radius x 0.5000" (1/2) Length of Cut x 2.5000" (2-1/2) Over...
Item Code: HEL-89903
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$184.50
/ EA , EA
LIST PRICE $184.50
%
Other selling quantities available
Add to quick list
Compare
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0200" Radius x 0.5000" (1/2) Length of Cut x 2.0000" (2) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-013-50375-R.020)
Helical Solutions
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0200" Radius x 0.5000" (1/2) Length of Cut x 2.0000" (2) Overall...
Item Code: HEL-89904
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$194.60
/ EA , EA
LIST PRICE $194.60
%
Other selling quantities available
Add to quick list
Compare
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0200" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-026-50375-R.020)
Helical Solutions
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0200" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Le...
Item Code: HEL-89905
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$208.40
/ EA , EA
LIST PRICE $208.40
%
Other selling quantities available
Add to quick list
Compare
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0300" Radius x 0.5000" (1/2) Length of Cut x 2.0000" (2) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-013-50375-R.030)
Helical Solutions
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0300" Radius x 0.5000" (1/2) Length of Cut x 2.0000" (2) Overall...
Item Code: HEL-89906
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$194.60
/ EA , EA
LIST PRICE $194.60
%
Other selling quantities available
Add to quick list
Compare
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0300" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-026-50375-R.030)
Helical Solutions
0.3750" (3/8) Cutter DIA x 0.3750" (3/8) Shank DIA x 0.0300" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Le...
Item Code: HEL-89907
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$208.40
/ EA , EA
LIST PRICE $208.40
%
Other selling quantities available
Add to quick list
Compare
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0300" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-020-50500-R.030)
Helical Solutions
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0300" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Le...
Item Code: HEL-89908
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$249.80
/ EA , EA
LIST PRICE $249.80
%
Other selling quantities available
Add to quick list
Compare
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0300" Radius x 1.2500" (1-1/4) Length of Cut x 3.0000" (3) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-025-50500-R.030)
Helical Solutions
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0300" Radius x 1.2500" (1-1/4) Length of Cut x 3.0000" (3) Overal...
Item Code: HEL-89909
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$266.00
/ EA , EA
LIST PRICE $266.00
%
Other selling quantities available
Add to quick list
Compare
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0300" Radius x 1.6250" (1-5/8) Length of Cut x 4.0000" (4) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-032-50500-R.030)
Helical Solutions
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0300" Radius x 1.6250" (1-5/8) Length of Cut x 4.0000" (4) Overal...
Item Code: HEL-89910
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$305.90
/ EA , EA
LIST PRICE $305.90
%
Other selling quantities available
Add to quick list
Compare
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0600" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-020-50500-R.060)
Helical Solutions
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0600" Radius x 1.0000" (1) Length of Cut x 3.0000" (3) Overall Le...
Item Code: HEL-89911
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$249.80
/ EA , EA
LIST PRICE $249.80
%
Other selling quantities available
Add to quick list
Compare
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0600" Radius x 1.2500" (1-1/4) Length of Cut x 3.0000" (3) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-025-50500-R.060)
Helical Solutions
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0600" Radius x 1.2500" (1-1/4) Length of Cut x 3.0000" (3) Overal...
Item Code: HEL-89912
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$266.00
/ EA , EA
LIST PRICE $266.00
%
Other selling quantities available
Add to quick list
Compare
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0600" Radius x 1.6250" (1-5/8) Length of Cut x 4.0000" (4) Overall Length Carbide Corner Radius Coolant Through End Mill for Stainless and High Temp, 5 Flutes, TPLUS Coated - (HEVC-032-50500-R.060)
Helical Solutions
0.5000" (1/2) Cutter DIA x 0.5000" (1/2) Shank DIA x 0.0600" Radius x 1.6250" (1-5/8) Length of Cut x 4.0000" (4) Overal...
Item Code: HEL-89913
Category 5 Flute - Corner Radius - Coolant Through - Variable Pitch End Mills for Stainless & High Temp
$305.90
/ EA , EA
LIST PRICE $305.90
%
Other selling quantities available
Add to quick list
Compare
Total 14 products
