Specialty Profiles

Designed for milling half dovetails, or full dovetails WITHOUT drop hole allowance, this offering of Dovetail Cutters - Parker Hannifin O-Ring Dovetail Cutters is CNC ground in the USA from solid carbide, and stocked in three coating styles: uncoated, AlTiN coated, or TiB2 coated.

Designed to the standards suggested by the O-Ring division of Parker Hannifin Corporations (tools meet both specs: ORD 5700/USA, ORD 5700)
Designed for milling half dovetails or full dovetails with no drop hole allowance
Mills bottom radius only
24° per side, 48° included
2 straight flutes
Center cutting
Solid carbide
CNC ground in the USA

Dovetailing

Dovetail Cutters - Parker Hannifin O - Ring Dovetail Cutters WITHOUT Drop Hole Allowance

18 items found

Sort by

Filter

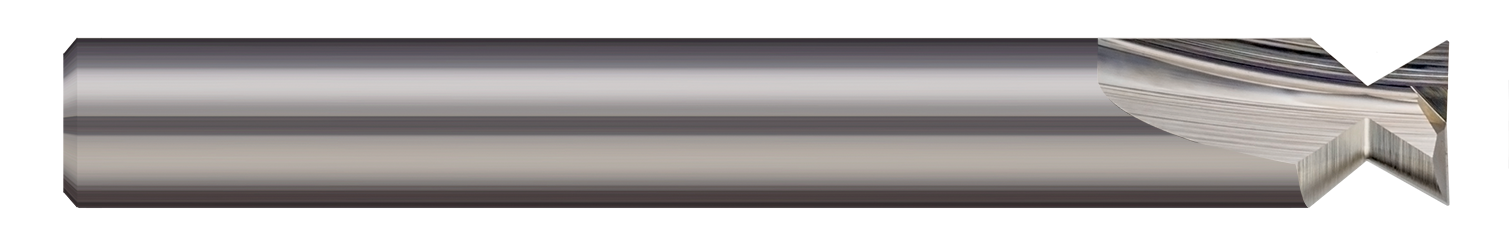

0.0550" (1.4 mm) Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes

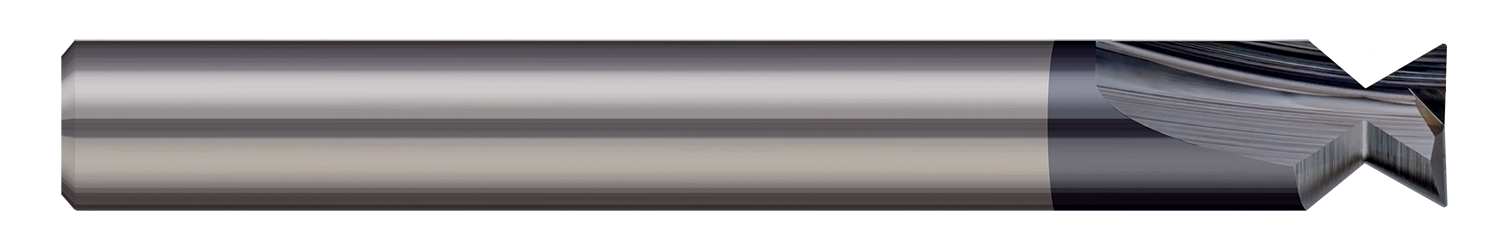

0.0550" (1.4 mm) Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, AlTiN Coated

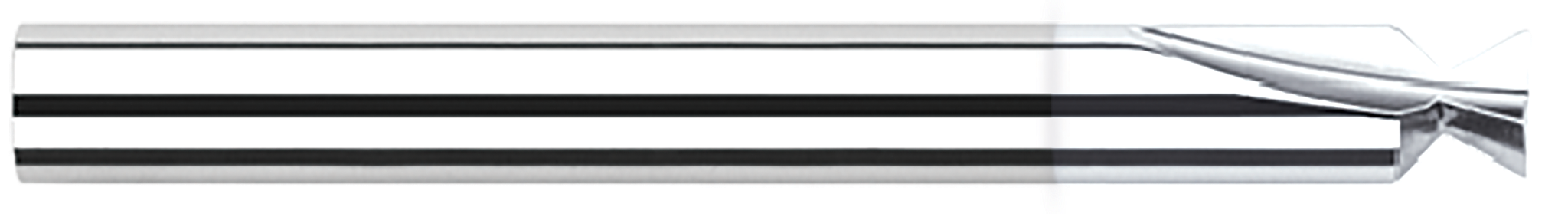

0.0550" (1.4 mm) Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, TiB2 Coated

0.0830" (2.1 mm) Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes

0.0830" (2.1 mm) Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, AlTiN Coated

0.0830" (2.1 mm) Cutter DIA x 0.0150" (1/64) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, TiB2 Coated

0.1130" Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes

0.1130" Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, AlTiN Coated

0.1130" Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, TiB2 Coated

0.1710" Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes

0.1710" Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, AlTiN Coated

0.1710" Cutter DIA x 0.0310" (1/32) Radius x 48° included Carbide Dovetail Cutter without Drop Hole Allowance, 2 Flutes, TiB2 Coated

Total 18 products
